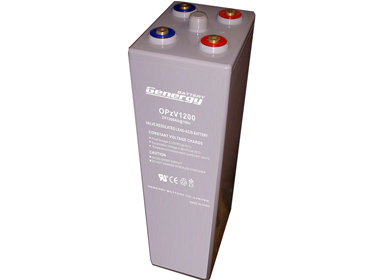

OPzV Series (Tubular Gel)

The rechargeable batteries are lead-lead dioxide systems. The dilute sulfuric acid electrolyte is absorbed by separators and plates and thus immobilized. Should the battery be accidentally overcharged producing hydrogen and oxygen, special one-way valves allow the gases the escape thus avoiding excessive pressure build-up. Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak proof and usable in any position.
Request a Quote

Key Features and Benefits

Applications

Product Specifications

  • The battery has a long service life, under float charging, ambient temperature 25°C, it can operate 15-20 years.
  • High cycle service life.
  • Excellent recovery from deep discharge and good deep discharge cycle capability.
  • The battery has a low self-discharge, keep over 60% of the rated capacity after 2 years stored under 20°C.
  • Better temperature resistance performance.
  • Excellent deep cycle performance.
  • Superior low current discharge performance.
  • Better high temperature performance.
  • Stronger constant power discharge capability.
  • Better charge reception capability.
  • Better safety performance and reliability.
  • Modular and personified installation design.
  • Solar energy system
  • Wind Energy System
  • Power Utility
  • UPS/EPS

Battery
Model
Volts Capacity (Ah) Dimensions (mm) Weight
(Kg)
Terminal Type
Discharge 10hr rate 1.75V/cell L W H TH
OPzV200 2 200 206 103 355 390 18.0  T28
OPzV250 2 250 206 124 355 390 21.5  T28
OPzV300 2 300 206 145 355 390 25.0  T28
OPzV350 2 350 206 124 471 506 28.5  T28
OPzV420 2 420 206 145 471 506 33.0  T28
OPzV500 2 500 206 166 471 506 38.5  T28
OPzV600 2 600 206 145 646 681 45.0  T28
OPzV770 2 770 254 210 471 506 60.0  T28
OPzV800 2 800 191 210 646 678 65.0  T28
OPzV1000 2 1000 233 210 646 678 80.0  T28
OPzV1200 2 1200 275 210 646 678 93.0  T28
OPzV1500 2 1500 275 210 795 827 117.0  T28
OPzV2000 2 2000 399 212 770 802 155.0  T28
OPzV2500 2 2500 487 212 770 802 192.0  T28
OPzV3000 2 3000 576 212 770 802 228.0  T28
