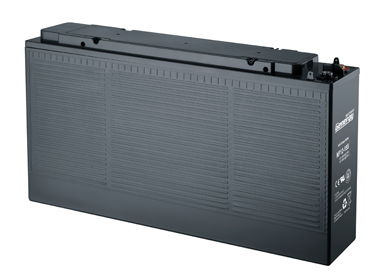

NF Series (Front Terminal)
Genergy NF Series is designed for telecommunication UPS/EPS system with 12-year design life in float service. The battery is featured of high consistency, excellent performance and reliable standby service life.
Standby Applications
Home >
PRODUCT >
Standby Applications
- 1
- 2
- 3
- 4
Key Features and Benefits
Applications
Product Specifications
Key Features and Benefits
- Compactness
- Central gassing system and hinged front covers on all models
- ETSI 19 inch / 23 inch integration
- Rackable stdard component
- High power to volume ratio
- Modularity, Long life
- Front connection and terminal access
- Fully tank formed plates
- Low impurity electrolyte
- Multi-position usage
- Spill proof / leak proof
- ABS case and cover VO upon request
-
Very high purity lead
Application
- Telecommunications
- Data Center
- Power Utility
- UPS & EPS
|
Battery Model |
Volts | Capacity (Ah) | Dimensions (mm) |
Weight (Kg) |
Terminal Type |
|||
|
Discharge 10hr rate 1.75V/cell |
L | W | H | TH | ||||
| NF12-50 | 12 | 50 | 277 | 106 | 223 | 223 | 17.8 | T11 |
| NF12-80 | 12 | 80 | 563 | 115 | 188 | 188 | 27.5 | T14 |
| NF12-100 | 12 | 100 | 395 | 110 | 286 | 286 | 32.1 | T14 |
| NF12-100A | 12 | 100 | 395 | 110 | 286 | 286 | 33.4 | T14 |
| NF12-105 | 12 | 105 | 507 | 110 | 230 | 230 | 30.9 | T14 |
| NF12-125 | 12 | 125 | 436 | 108 | 317 | 317 | 39.0 | T14 |
| NF12-150 | 12 | 150 | 552 | 110 | 287 | 287 | 43.5 | T14 |
| NF12-155 | 12 | 155 | 552 | 110 | 287 | 287 | 48.5 | T14 |
| NF12-180 | 12 | 180 | 561 | 125 | 316 | 316 | 55.5 | T14 |
|
NF12-190 |
12 | 190 | 561 | 125 | 316 | 316 | 57.0 | T14 |
| NF12-190A | 12 | 190 | 561 | 125 | 316 | 316 | 62.5 | T14 |
